RESISTANCE heaters micanite

GENERAL FEATURES:

The band resistance heaters for Mica, because of their multiple uses, electric heaters are made ​​of a thin sheet mica that isolates the internal circuit completely wire resistive nickel-chromium (Ni-Cr) from the inner surface of the diameter of the structure -metal armor of steel / stainless steel that protects the heater from accidental impact.

For this reason, this type of mica heating elements is well suited to many applications that require heating, on contact, no standards for operating temperatures above 280 ° C.

The coupling of various combinations of materials in the construction of this resistance enables them to achieve high performance in relation to the specific application and the operating temperatures required. In addition, the thin sheet of mica allow optimal heat transfer and, simultaneously, limiting the temperature reached the resistive wire, resulting in a lengthening of the useful operating life of the heater.

The quality of the raw materials used, as well as the experience and the extreme care with which we are assembled, make this type of electric heaters of proven efficiency and reliability.

Made of various diameters, the resistance heaters micanite perfectly envelop the diameter of the cylindrical surface to be heated, ensuring an effective radiant heating on the body to be heated, thanks to a good and a good heat exchange surface density (W/cm2).

This graph shows the energy saving of around 20% obtained when using a ceramic band heaters than with mica insulation. This result is the result of a laboratory test after 24 hours of continuous work.

Advantages:

• High heat, seen as effective and uniform heat transmission, as well as a limited time to reach the required temperature range, due to the fact that these strengths are working in direct contact with the surface to be heated.

• High electrical insulation

• Constant efficiency over time and extended useful life

• Dimensional accuracy

• Very robust

• Easy installation (thanks to hooks, springs, etc..)

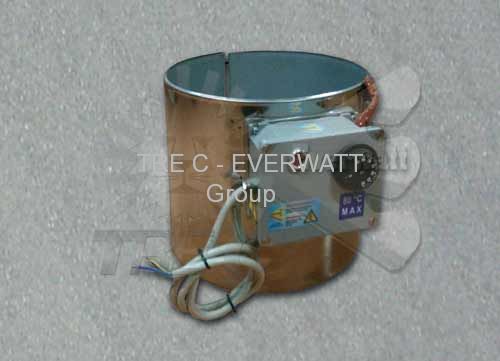

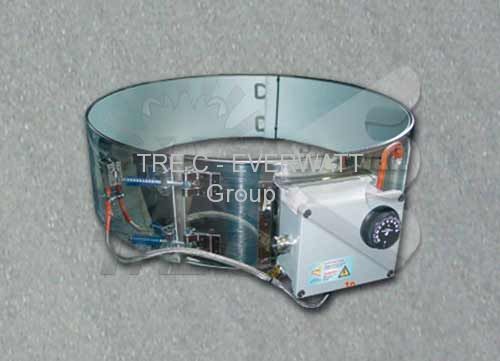

• Integration of temperature sensors

• Easy cleaning and maintenance

• High mechanical resistance to tearing of the connection and impact

Uses:

• The rules for the application of a resistance heaters mica are the type of support that will host and temperature that will endure.

• Among the main applications of the typical electrical resistance heaters Mica, remember:

• Storage drums, pipes, hot water boilers

• Cylindrical containers of various types for indirect heating of fluids and / or other materials.

PRODUCT QUALITY ‘CERTIFIED

The entire production cycle of resistance heaters Mica is subject to stricter controls dimensional and electrical tests in accordance with regulations of our Company Quality System certified to ISO 9001:2008 and in full compliance with the requirements of current standards IEC / EN.

The various operating temperatures require different combinations of type of interior insulation and outer shell, which we report, followed by some tips from our experience:

The combinations referred to above are those commonly used in various applications, the temperatures specific for each type.
Improper use of the heater with respect to the initial design release the manufacturer from any liability.

USEFUL DATA FOR DESIGN

The construction of an electrical resistance heaters micanite requires knowledge of the technical data essential to the design:

• Quantity: Specify amount requested

• Diameter (Ø): internal diameter range

• Height (H): high-end

• Power (W): (Note: the total power is equal to the sum of the 2 parts (half circles) that make up the complete body of strength)

• Supply Voltage (V)

• Wiring Type: specify type and location of electrical contacts

• Attack Type: Specify the type of attack (hook, spring, etc. …) to choose between finishing our standards (for details see data sheet “download area”)

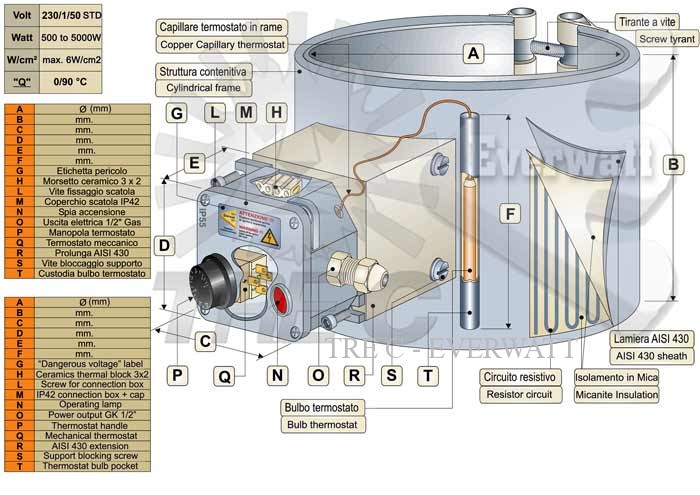

• Other: Size and position of holes for thermocouple, resetting the thermostats temperatures (where required on-board resistance) and any other specific technical feature.

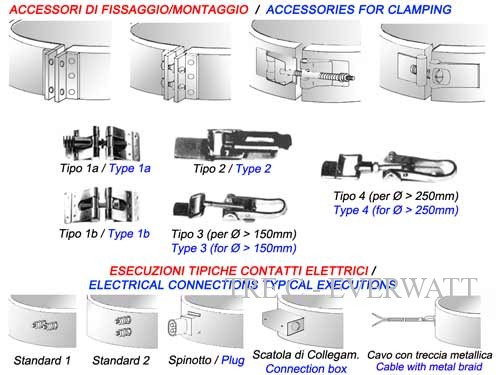

TYPE OF EXECUTION (Electrical contacts and attachment / mounting system)

The electric resistance heaters Mica can be made ​​taking into account two different parameters:

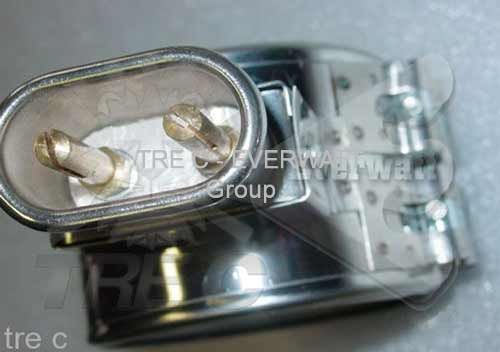

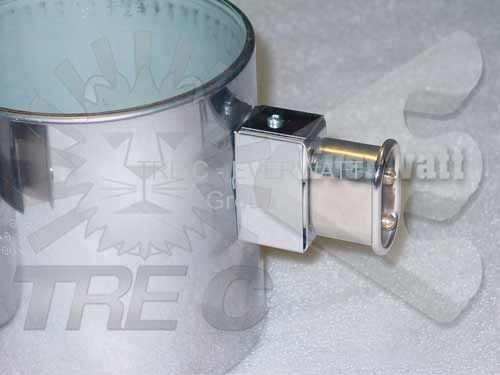

• Type of electrical contacts to be installed on the body resistance

• Attack type fastening / assembly system to predict the construction phase of the resistance

Resistors Standard Catalog

This type of mica band heaters can be built to customer specifications is that in the standard version, which we have a warehouse ready for the type of power, voltage, sheath diameter and type of finish.

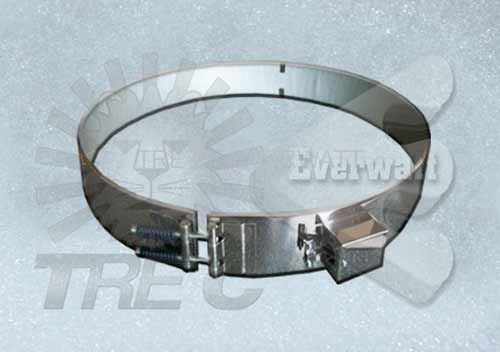

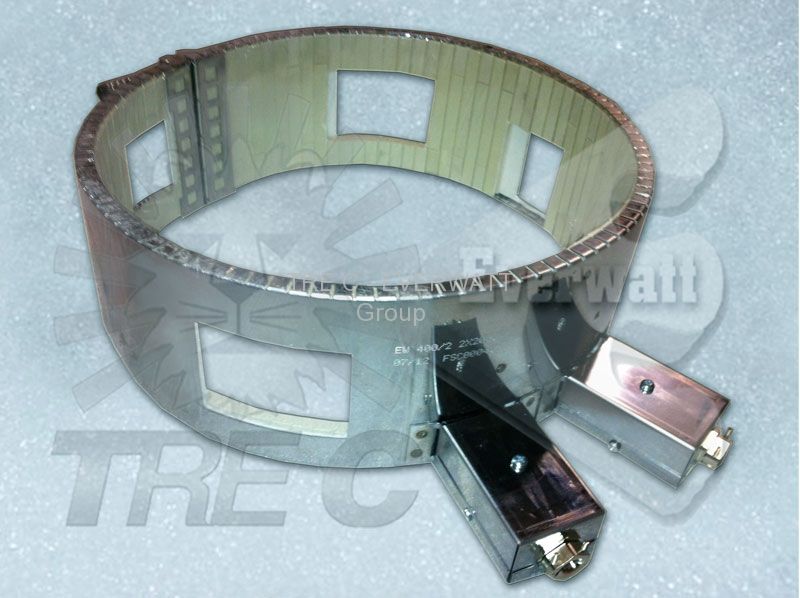

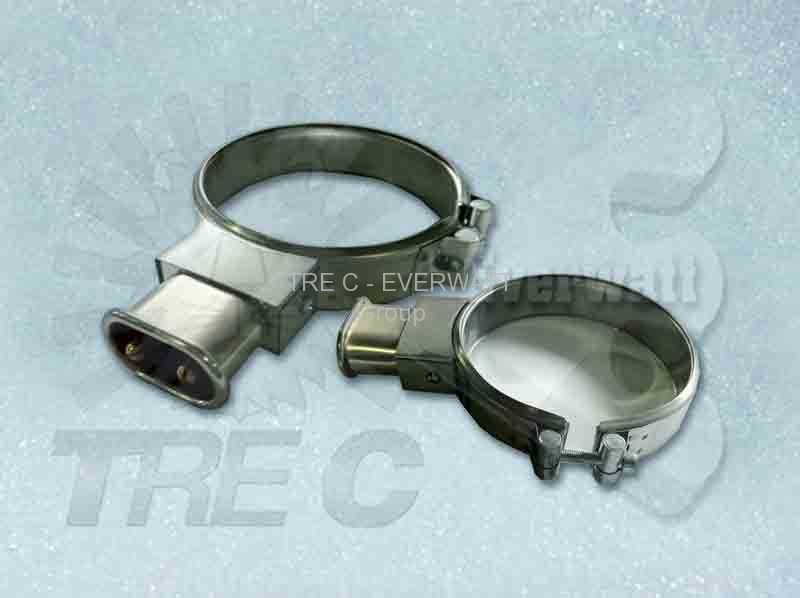

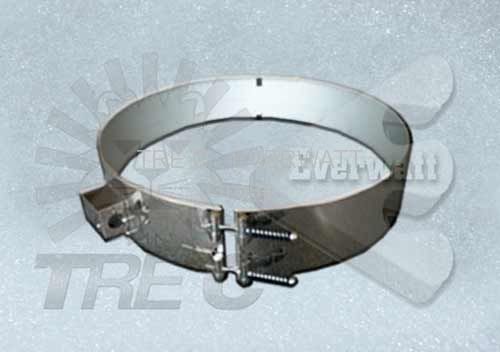

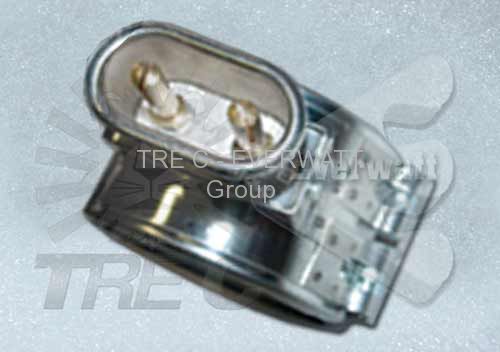

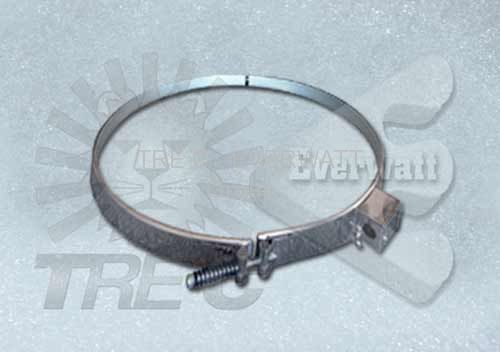

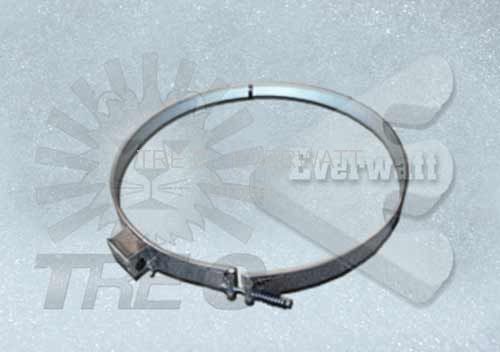

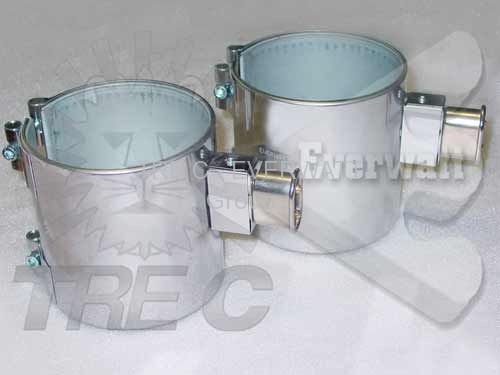

SOME EXAMPLES:

[Show as slideshow]

For more details see the section “Download Area“

or request a quote online by filling out the “Quotation Request Form“
