Silicone Rubber heaters

GENERAL CHARACTERISTICS:

The electrical resistance heaters are electric heaters manufactured by interposing between the layers of dielectric insulating material (silicone rubber) a resistive circuit made ​​with innovative technologies such as etching of metallic foils, inks or pastes deposit.

In this way, elements can be constructed with thin very flexible, which can be adapted well to the observations of the surface to be heated on which are placed in direct contact to allow for better heat exchange.

These heaters are widely used in all applications requiring moderate temperature applications. This type of electric heaters heaters are made with vulcanized silicone rubber, although it is made ​​with materials of low weight, high strength and offer considerable resistance to chemicals, ozone, mold or fungi, as well as water vapor and radiation .

These are flexible heaters can heat in a short time various fluids typically viscous, leading to a liquid state.

Advantages:

• Although of limited power, these heaters provide a high heat exchange and a limited time to reach the required temperature range, due to the fact that adapt perfectly to the shape of the barrel / barrel being in direct contact with its surface.

• For specific requirements is also possible to create multi-distribution circuit, or where the total power required on-board barrel is divided between several heaters heaters connected to each other.

• Differentiation of temperature / power on the surface.

• Flexibility, low weight

• Good thermal insulation

• Board mounting frame / barrel by springs and hooks (standard version) or using elastic hooks and mobile belts, plastic, or velcro or strap (special non-standard versions).

• Integration of sensors

• Easy cleaning and maintenance

• Very handy to use

• Convenience in storage: When not in use, these heaters can be easily turned in upon themselves, dealing with very limited space.

Use:

• Protect from freezing liquids

• Dissolution of solids with low melting point such as paraffin, various resins and chocolate

• Control of the viscosity of fluids paint and / or foods (syrups and honey)

SPECIFICATIONS:

• Voltage: 230V (standard) or 120V up to 600V (non-standard)

• Maximum operating temperature: 199 ° C

• Surface density limited.

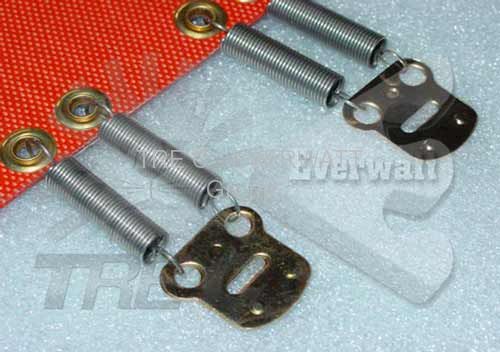

• Mounting: All models are supplied with springs and hooks for easy installation on resistant trees.

• Power: All models are supplied with power cables with standard lengths of silicone (3 x 1 L = 1.5 meters), complete with plug electrical cables, or depending on specific application needs.

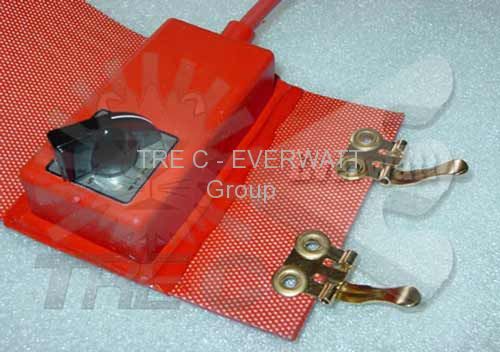

• Temperature Control Devices: Upon request, the resistance heaters are supplied complete with integrated temperature control devices are compatible for installation on drums / barrels of steel or plastic material, such as fixed thermostat bimetal thermostat limiter, fixed thermostat and temperature limiter Integrated, adjustable thermostat from 0 to 180 ° C or thermocouples or PT100.

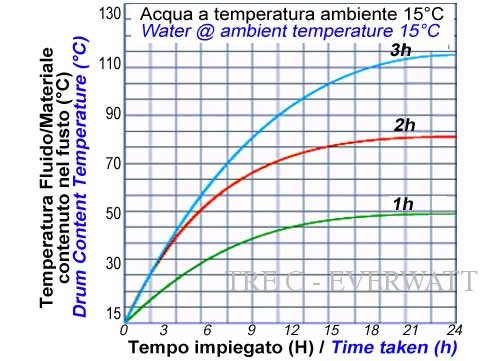

• To determine the total power needed to reach the temperature of the fluid / material to be heated, which can also result from the sum of a given number of heaters heaters installed on the same frame / barrel must be taken into due consideration the material of the stem and the physical-chemical properties of the fluid / material contained therein.

PRODUCT QUALITY ‘CERTIFIED

The entire production cycle of resistance heaters shall be subject to stricter controls dimensional and electrical tests in accordance with regulations of our Company Quality System certified to ISO 9001:2008 and in full compliance with the requirements of current standards IEC / EN.

Among the main electrical testing of evidence indicated, this type of product is carefully tested for insulation resistance, dielectric strength, and Ohmic value of leakage current.

RESISTANCE STANDARD CATALOGUE
The heaters electric heaters can be manufactured in various powers, both in standard or custom shapes to customer specifications, in any case, these heaters are adapted optimally to the surface to be heated (metal or plastic drums containing liquids).
On board of these heaters heaters can provide adequate thermal control integrated with the same body resistance.

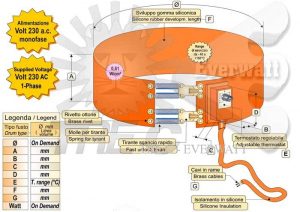

Below, we summarize a table summarizing the range of our standard models.

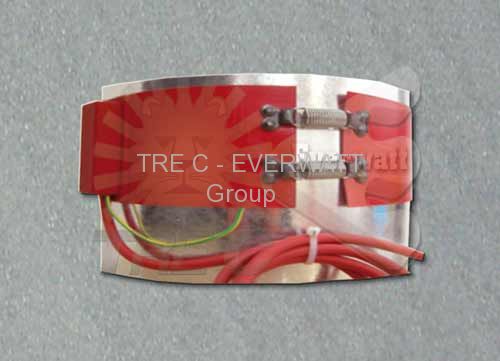

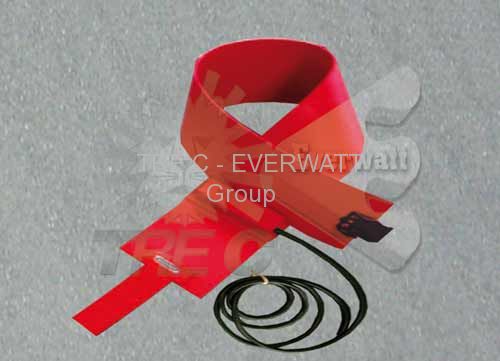

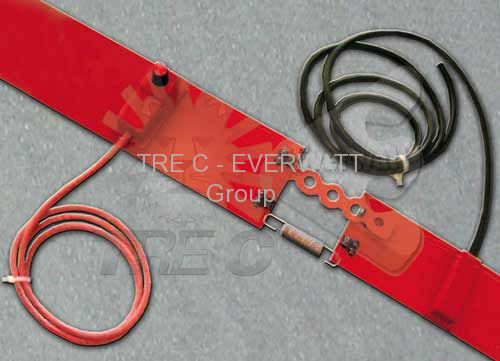

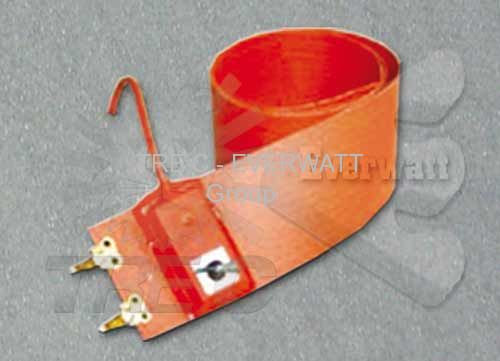

DRUM HEATERS heaters for in METAL or PLASTIC

SOME EXAMPLES:

[Show as slideshow]

For more details see the section “Download Area“

or request a quote online by filling out the “Quotation Request Form“
